Cemented carbide anti-shock cutter handle

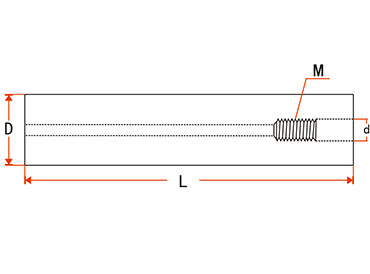

一、鎖牙式標準抗震刀桿規格尺寸Teeth lock type standard cutter handle sizes：
?
|
規格Item no. D×d×L |
D（Φ） |
d（Φ） |
L（長） |
M |
公差Tolerance |
||
D |
L |
d |
|||||
8*100-M4 |
8 |
4.5 |
100 |
4 |
+0.3 |
+1.0 |
+0 |
10*100-M5 |
10 |
5.5 |
100 |
5 |
|||
10*150-M5 |
10 |
5.5 |
150 |
5 |
|||
12*100-M6 |
12 |
6.5 |
100 |
6 |
|||
12*150-M6 |
12 |
6.5 |
150 |
6 |
|||
14*150-M8 |
14 |
8.5 |
150 |
8 |
+0.5 |
+1.0 |
+0 |
15*150-M8 |
15 |
8.5 |
150 |
8 |
|||
15.6*150-M8 |
15.6 |
8.5 |
150 |
8 |
|||
16*150-M8 |
16 |
8.5 |
150 |
8 |
|||
16*200-M8 |
16 |
8.5 |
200 |
8 |
|||
16*250-M8 |
16 |
8.5 |
250 |
8 |
|||
16*300-M8 |
16 |
8.5 |
300 |
8 |
|||
20*150-M10 |
20 |
10.5 |
150 |
10 |
|||
20*200-M10 |
20 |
10.5 |
200 |
10 |
|||
20*250-M10 |
20 |
10.5 |
250 |
10 |
|||
20*300-M10 |
20 |
10.5 |
300 |
10 |
|||
25*150-M12 |
25 |
12.5 |
150 |
12 |
+0.8 |
+1.0 |
+0 |
25*200-M12 |
25 |
12.5 |
200 |
12 |
|||
25*250-M12 |
25 |
12.5 |
250 |
12 |
|||
25*300-M12 |
25 |
12.5 |
300 |
12 |
|||
32*200-M16 |
32 |
17.0 |
200 |
16 |
|||
32*250-M16 |
32 |
17.0 |
250 |
16 |
|||
32*300-M16 |
32 |
17.0 |
300 |
16 |
|||
?
*其他特殊要求，可按客戶尺寸或樣品（圖紙）生產。
*For any other sizes or odd sizes, We are able to custom made-according to clients' requirements or according to clients'drawings.
?
二、焊接式標準抗震刀桿規格尺寸Brazing type standard cutter handle sizes：
?
規格Item no. |
D（Φ） |
公差Tolerancem |
L（長） |
公差Tolerance |
精磨公差Finish ground tolerance |
||
D |
L |
倒角 |
|||||
4*90 |
4.3 |
+0.1/-0.1 |
90 |
+0.5/+1.0 |
h6 |
+0.3/-0 |
? |
5*100 |
5.3 |
+0.1/-0.1 |
100 |
+0.5/+1.0 |
|||
6*110 |
6.3 |
+0.1/-0.1 |
110 |
+0.5/+1.0 |
|||
7*120 |
7.3 |
+0.1/-0.1 |
120 |
+0.5/+1.0 |
|||
8*120 |
8.3 |
+0.1/-0.1 |
120 |
+0.5/+1.0 |
|||
10*140 |
10.4 |
+0.1/-0.1 |
140 |
+0.8/+1.2 |
+0.5/-0 |
? |
|
12*140 |
12.4 |
+0.1/-0.1 |
140 |
+0.8/+1.2 |
|||
12*165 |
12.4 |
+0.1/-0.1 |
165 |
+0.8/+1.2 |
|||
14*165 |
14.5 |
+0.1/-0.1 |
165 |
+0.8/+1.2 |
|||
14*185 |
14.5 |
+0.1/-0.1 |
185 |
+0.8/+1.2 |
|||
16*180 |
16.5 |
+0.1/-0.1 |
180 |
+0.8/+1.2 |
|||
16*240 |
16.5 |
+0.1/-0.1 |
240 |
+1.0/+2.0 |
|||
18*180 |
18.6 |
+0.1/-0.1 |
180 |
+1.0/+2.0 |
|||
18*240 |
18.6 |
+0.1/-0.1 |
240 |
+1.0/+2.0 |
|||
20*200 |
20.8 |
+0.1/-0.1 |
200 |
+1.0/+2.0 |
|||
20*240 |
20.8 |
+0.1/-0.1 |
240 |
+1.0/+2.0 |
|||
25*200 |
25.8 |
+0.1/-0.1 |
200 |
+1.0/+2.5 |
+0.5/-0 |
? |
|
25*280 |
25.8 |
+0.1/-0.1 |
280 |
+1.0/+2.5 |
|||
32*200 |
33 |
+0.1/-0.1 |
200 |
+1.0/+2.5 |
|||
32*250 |
33 |
+0.1/-0.1 |
250 |
+1.0/+2.5 |
|||
32*300 |
33 |
+0.1/-0.1 |
300 |
+1.0/+2.5 |
|||
?
*其他特殊要求，可按客戶尺寸或樣品（圖紙）生產。
*For any other sizes or odd sizes, We are able to custom made-according to clients' requirements or according to clients'drawings.
